Portable Road Marking Retroreflectometer for Accurate Night Visibility Testing
Free Samples 3-Day Global Shipping （No Hidden Costs)
Standard ASTM E1710/EN 1436/ISO 2813/JIS K 5600-4-1/AASHTO T250/AHRS/SANS
MOQ 500kg, Fast Delivery: 7-15 Days

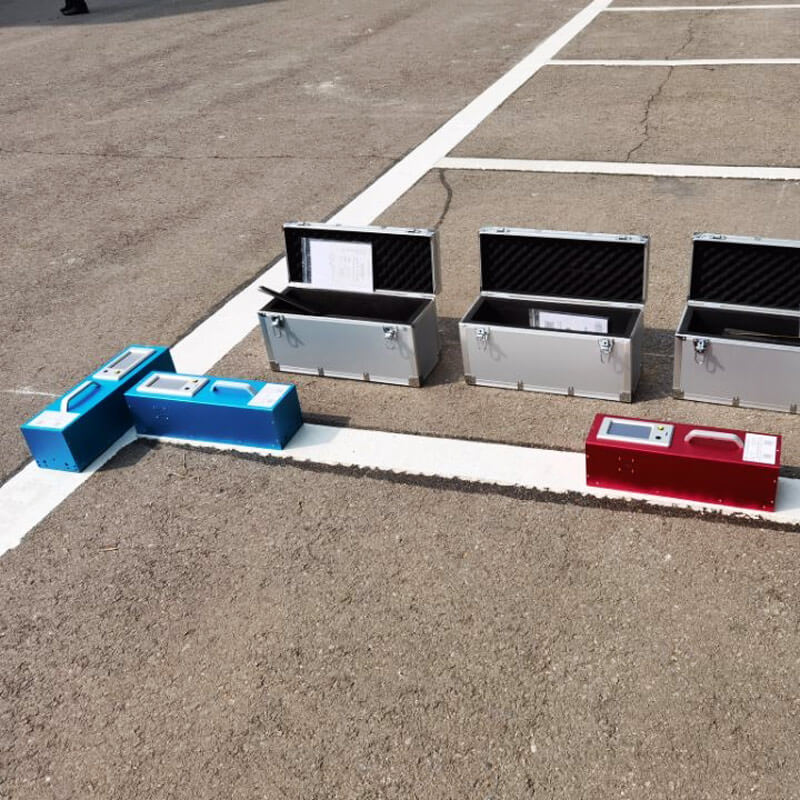

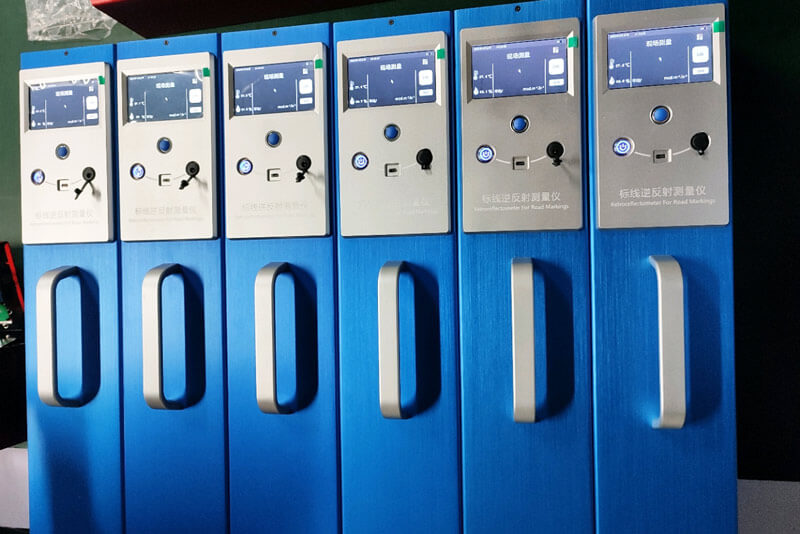

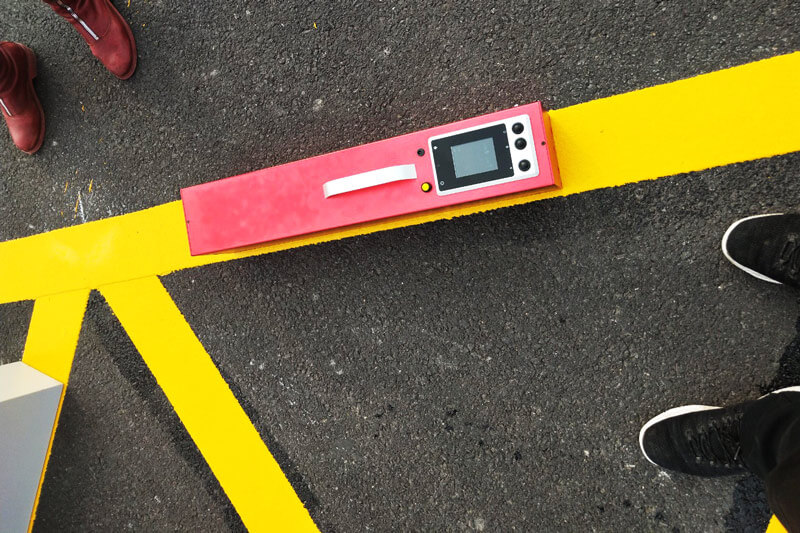

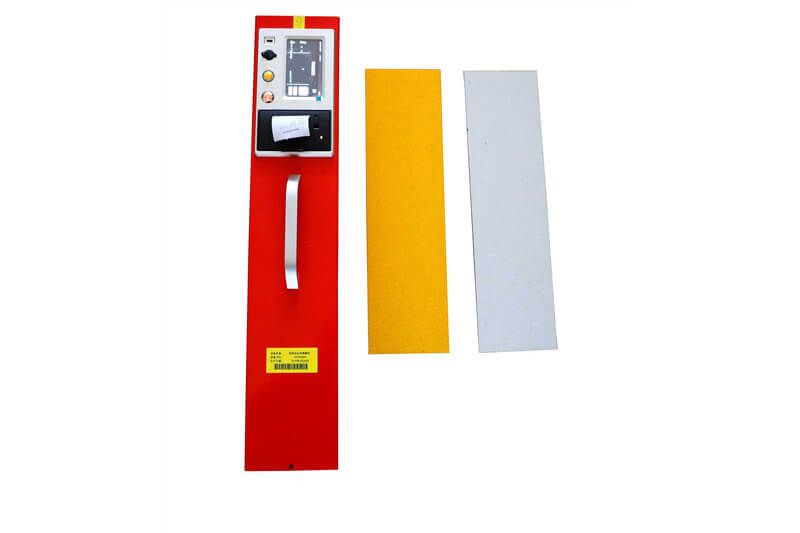

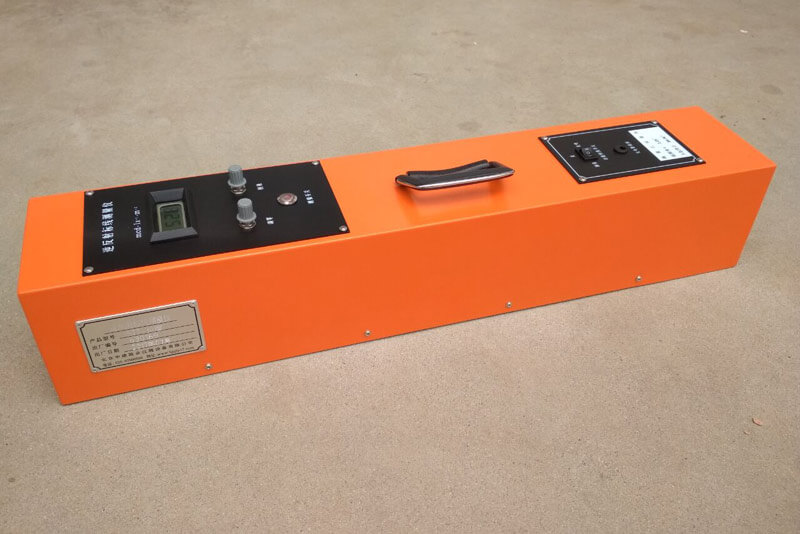

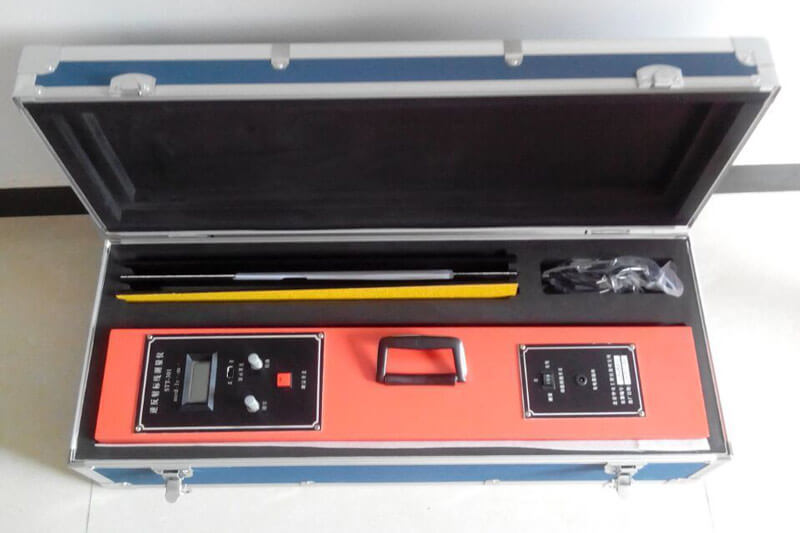

Our Road Marking Retroreflectometer is a portable, high-precision device designed to measure the retroreflectivity of thermoplastic and cold paint road markings. It ensures compliance with international visibility standards, making it ideal for quality inspection across highways, city roads, and airports in Southeast Asia, Africa, and the Middle East. With fast response time, easy calibration, and robust field performance, this device guarantees reliable results in day or night inspections.
White/Yellow/Blue/Other Colors
We welcome sample requests.
Road marking paint plays a vital role in traffic management, improving safety, efficiency, and organization across different environments. From highways to urban roads, and even specialized areas like transport hubs and industrial zones, high-quality road markings enhance visibility and guide road users effectively.
| Item | Specification |
| Product Type | Road Marking Retroreflectometer |
| Measurement Method | Retroreflection measurement based on optical geometry |
| Measurement Range | 0 to 2000 mcd/m²/lx |
| Measurement Geometry | Microprismatic, 90° observation angle and 1° entrance angle |
| Light Source | LED, wavelength 850nm |
| Accuracy | ±5% of reading |
| Display | LCD display with backlight |
| Power Supply | Rechargeable lithium battery (12V) |
| Operating Temperature | -10°C to 50°C |
| Humidity | 0 to 90% RH (non-condensing) |
| Weight | Approx. 2.5 kg |
| Dimensions | 300mm x 200mm x 120mm |
| Data Output | RS-232 interface for data transfer |
| Calibration | Factory calibrated, field calibration possible |
| Certifications | CE, ISO 9001 |
| Application | Used for measuring retroreflectivity of road markings and signs |
It measures the retroreflective brightness (mcd/m²/lux) of road markings to ensure visibility for drivers at night.
Yes, it meets ASTM E1710, EN 1436, and local regulations in GCC countries and Southeast Asia.
Absolutely. It is compatible with both thermoplastic, cold-applied paints, and glass bead-enhanced lines.
The rechargeable battery supports over 12 hours of continuous testing on a single charge.
Yes, it operates reliably between -10°C to 60°C, with sealed electronics resistant to humidity and dust.
Superior Reflective Performance
Optimized Safety Solutions
Engineered Industrial Durability
Rapid Application Technology
Eco-Friendly Aesthetic Appeal
Vibrant, Long-Lasting Markings
Robust Corrosion Protection
High Visibility Assurance
This retroreflectometer is essential for our road marking projects in India. It provides accurate and quick readings, ensuring that our markings meet required safety standards.
In Saudi Arabia, this retroreflectometer has significantly improved our road safety projects. The easy-to-use interface and precise results help maintain high quality on all markings.
In Argentina, this retroreflectometer allows us to accurately measure road markings' visibility. It’s compact, portable, and helps us maintain top-notch safety standards on highways.
In Pakistan, we rely on this retroreflectometer for accurate testing of road markings. It helps ensure proper visibility even in low-light conditions. Great value for money.
In Oman, this retroreflectometer is a reliable tool for assessing the retroreflectivity of road lines. It helps us meet high-quality standards and ensures safe driving conditions.
This retroreflectometer has been a key part of our road safety efforts in Brazil. Its accuracy in measuring reflectivity ensures we comply with regulations and provide safer roads.
