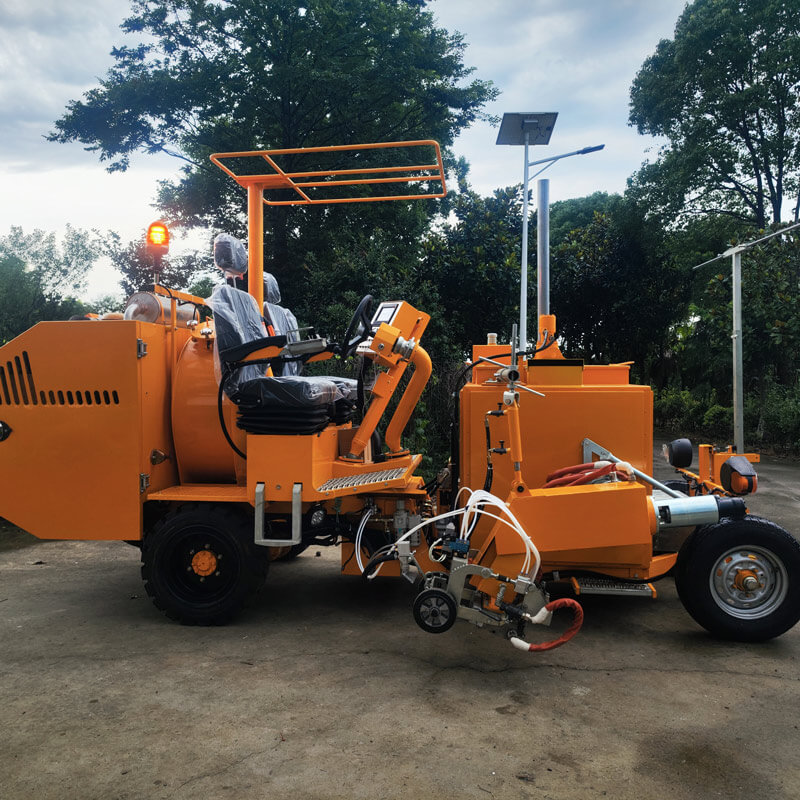

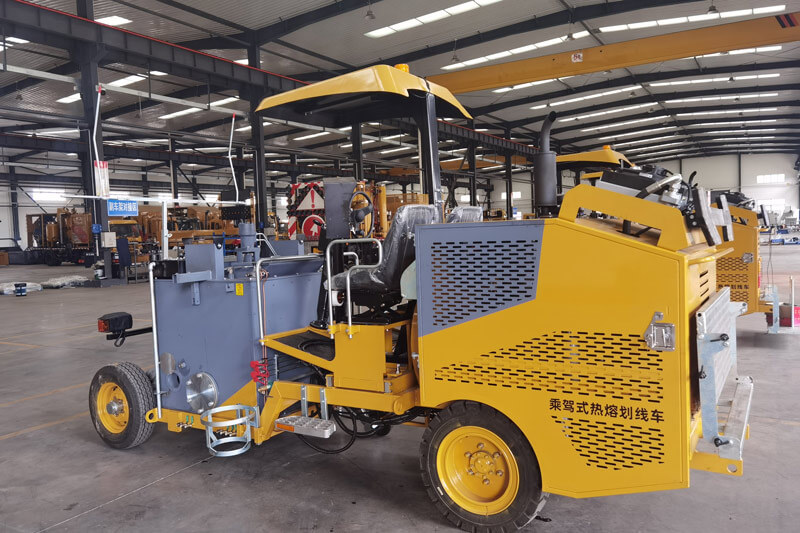

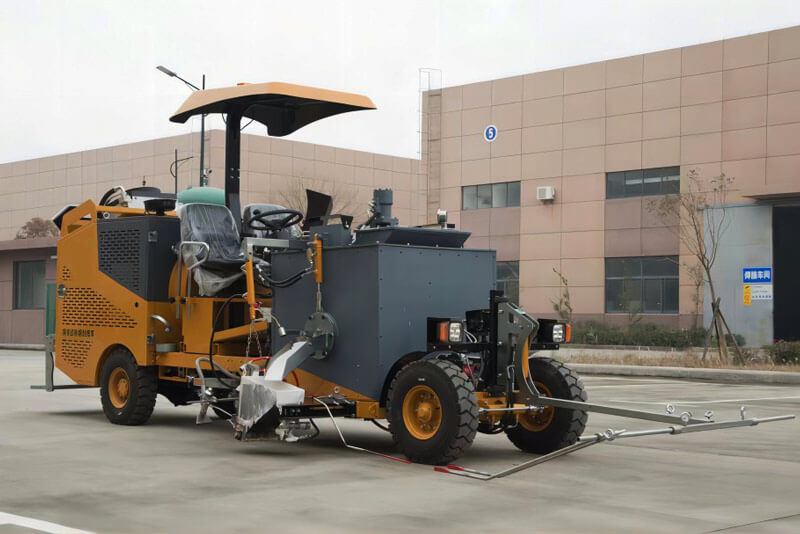

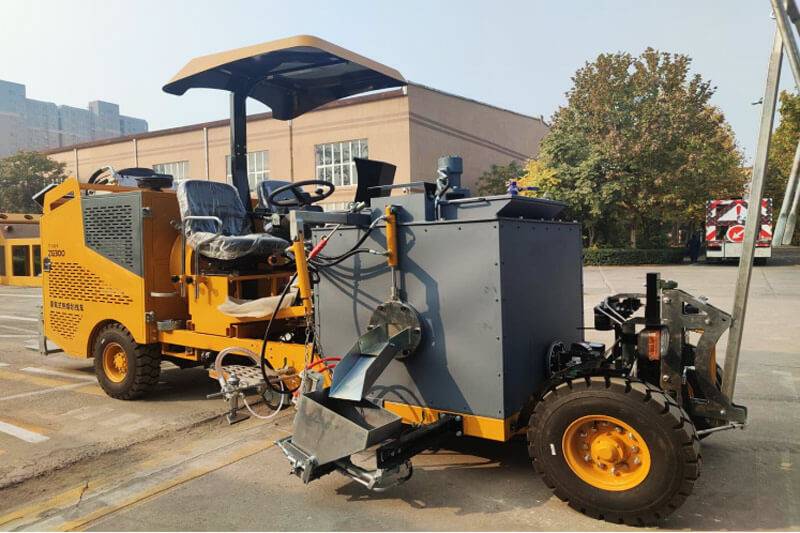

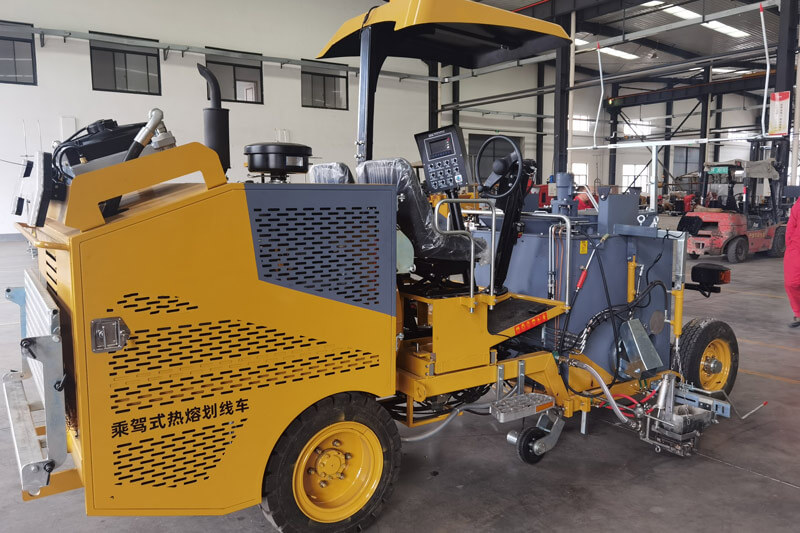

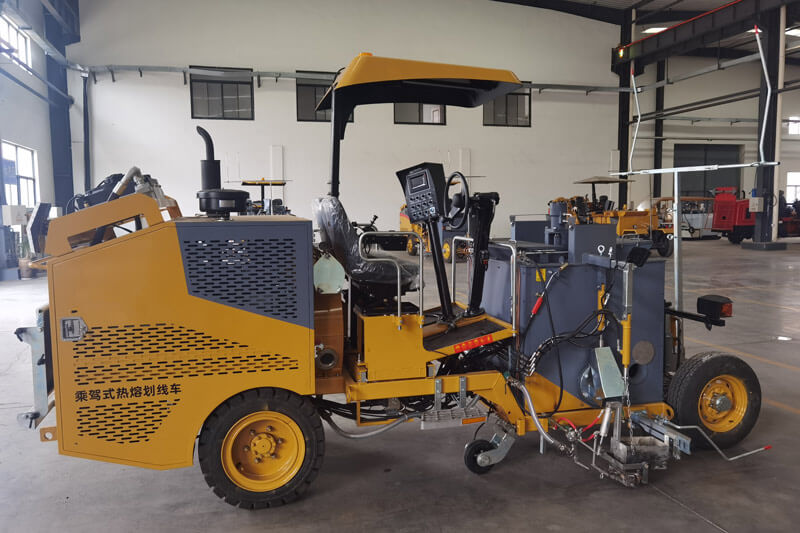

Road Marking Truck for Highway and City Line Striping Projects - Trusted Worldwide
Widely Used For Roads & Highways, Parking & Commercial Areas, Airports & Transport Hubs, Public & Private Properties, Special Road Markings
Color Customized White/Yellow/Blue/Other Colors
Free Samples 3-Day Global Shipping （No Hidden Costs
Standard CE/ISO 9001:2015/EN 1436/EU Machinery Directive 2006/42/EC/GCC
MOQ 1 set, Fast Delivery: 7-15 Days
White/Yellow/Blue/Other Colors
We welcome sample requests.
Road marking paint plays a vital role in traffic management, improving safety, efficiency, and organization across different environments. From highways to urban roads, and even specialized areas like transport hubs and industrial zones, high-quality road markings enhance visibility and guide road users effectively.
| Item | Specification |
| Model | RMT-8000 / RMT-10000 / Customizable |
| Vehicle Chassis | ISUZU / Dongfeng / Foton / Custom brand |
| Engine Type | Diesel, Euro 5/6 standard, 120–180 HP |
| Drive Type | 4×2 / 4×4 (optional) |
| Marking Type | Thermoplastic / Cold paint / Two-component / Water-based |
| Marking Width | 100 mm – 450 mm (adjustable) |
| Line Thickness | 1.5 mm – 4.0 mm (adjustable) |
| Paint Tank Capacity | 300L – 500L (stainless steel, insulated & heated) |
| Glass Bead Tank Capacity | 100L – 200L (stainless steel, pressurized) |
| Heating Method | LPG direct heating / Oil burner heating system |
| Control System | PLC intelligent control panel with touch screen |
| Line Type Capability | Straight lines, dashed lines, arrows, zebra crossings, symbols |
| Operation Speed | 1 – 15 km/h (adjustable) |
| Paint Pump | High-pressure diaphragm or plunger pump |
| Marking Gun | Automatic / Manual / Dual-gun optional |
| Night Operation | Equipped with LED working lights and reflective devices |
| Camera System | Rear-view + Top-view cameras (optional) |
| Navigation & Guidance | GPS / Laser guide / Auto line-tracking system (optional) |
| Cleaning System | High-pressure flushing for easy maintenance |
| Dimensions (L×W×H) | Approx. 6800×2100×2800 mm |
| Gross Vehicle Weight | 7500 – 10000 kg |
| Customization Options | Multi-language interface, dual marking system, trailer type, logo branding etc. |
It supports thermoplastic, cold paint, and two-component materials based on your configuration.
Yes, it can mark up to 3–5 lines simultaneously with independent control arms.
Absolutely, it's designed for high-speed, long-line striping with large tank capacity and fuel-efficient engines.
The system uses PLC or manual controls for spray guns, heating, and pressure management, with optional GPS assistance.
Yes, we offer full customization including line width, number of tanks, heating method, and cabin controls.
Superior Reflective Performance
Optimized Safety Solutions
Engineered Industrial Durability
Rapid Application Technology
Eco-Friendly Aesthetic Appeal
Vibrant, Long-Lasting Markings
Robust Corrosion Protection
High Visibility Assurance
This road marking truck worked perfectly in Saudi Arabia. Efficient, accurate lines, and easy to operate. A reliable machine for long-distance highway projects.
We used this marking truck in Ghana. Smooth operation and consistent line thickness. Helped us finish the project ahead of schedule. Highly recommended!
Excellent performance in China’s high-traffic areas. The truck is stable, precise, and very fuel efficient. Ideal for both urban and rural markings.
In Kenya, this road marking truck handled all terrain types. Easy to maintain and great output speed. We’re very satisfied with the quality and service.
This marking truck was used throughout Vietnam’s city roads. High precision spray system, intuitive controls, and excellent after-sales support. A professional-grade machine.
Used this truck in Peru for reflective road lines. Very stable, and the paint output is accurate. Great investment for any municipal road authority.
