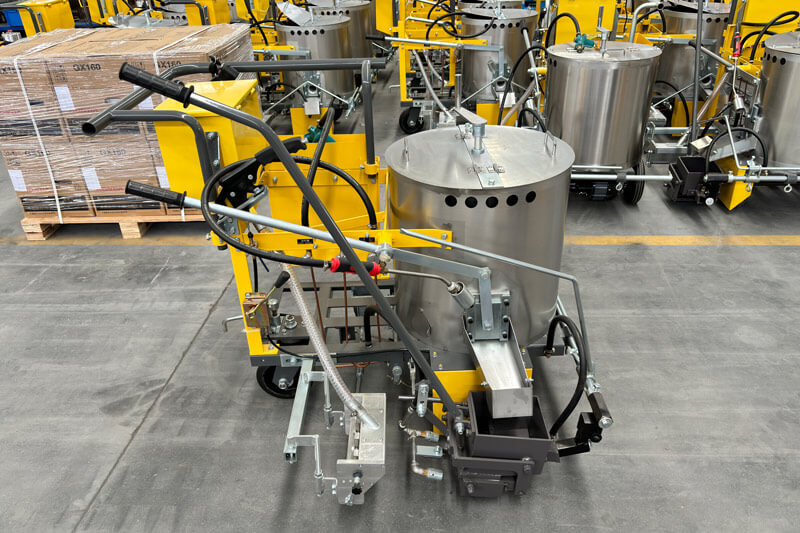

Durable Thermoplastic Convex Road Marking Machine - Trusted Worldwide
Widely Used For Roads & Highways, Parking & Commercial Areas, Airports & Transport Hubs, Public & Private Properties, Special Road Markings
Color Customized White/Yellow/Blue/Other Colors
Free Samples 3-Day Global Shipping （No Hidden Costs)
Standard CE/ISO 9001:2015/EN 1436/SGS/RoHS
MOQ 1 set, Fast Delivery: 7-15 Days
White/Yellow/Blue/Other Colors
We welcome sample requests.
Road marking paint plays a vital role in traffic management, improving safety, efficiency, and organization across different environments. From highways to urban roads, and even specialized areas like transport hubs and industrial zones, high-quality road markings enhance visibility and guide road users effectively.
| Item | Specification |
| Model | TCM-800 / TCM-1000 / Customizable |
| Marking Type | Thermoplastic convex line (vibration / audible warning) |
| Convex Pattern | Dotted, linear, full convex, customized pattern mold |
| Marking Width | 100 mm – 450 mm |
| Convex Height | 3 mm – 8 mm (adjustable) |
| Line Thickness | 1.5 mm – 4 mm (base layer) |
| Paint Tank Capacity | 100 – 300 kg (double-layer heat preservation) |
| Glass Bead Dispenser | 50 – 100 kg, pressure or gravity type |
| Heating System | LPG heating / Diesel burner optional |

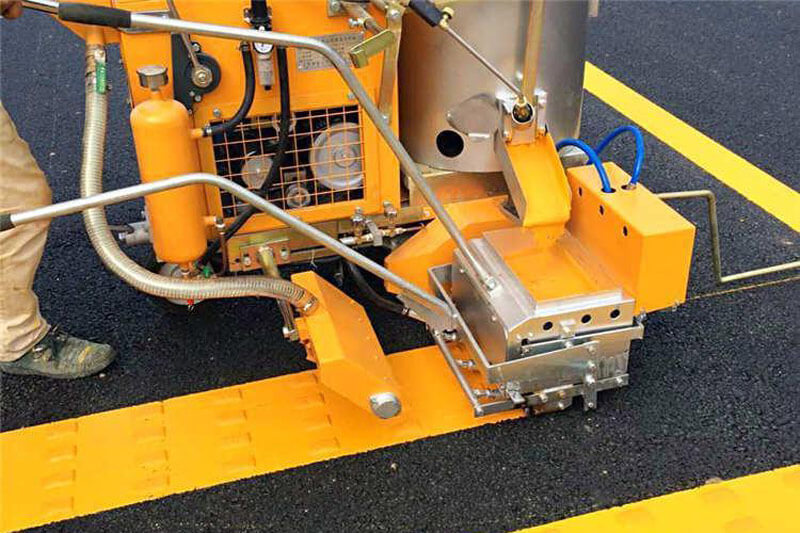

| Application Method | Extrusion / Screed with convex mold |

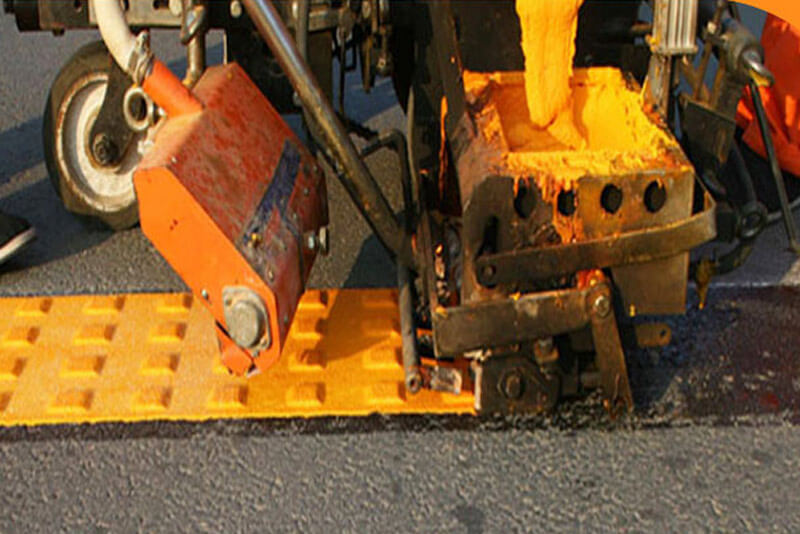

| Convex Formation | Automatic stamping mold / gear rolling |

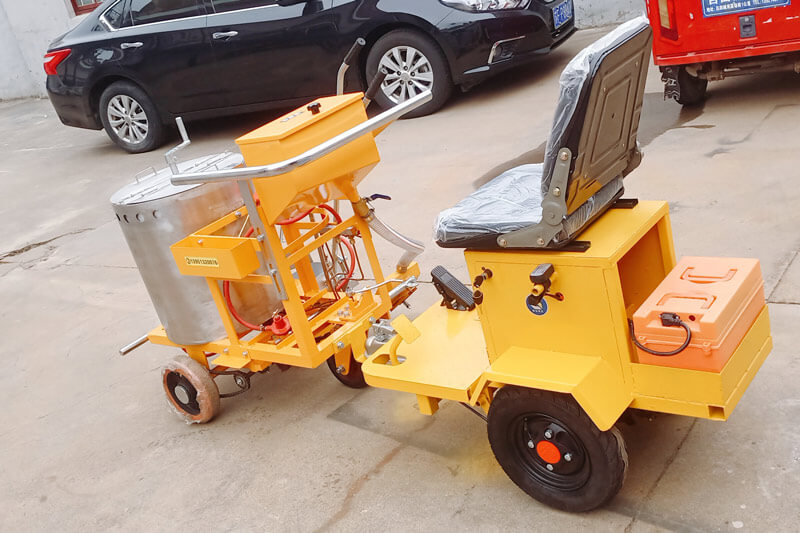

| Drive Method | Manual push / Self-propelled / Vehicle-mounted |
| Engine Type | Gasoline engine, 5.5HP–6.5HP |
| Operating Temperature | 180°C – 220°C |
| Operation Speed | 1 – 5 km/h |
| Cleaning System | Anti-stick coating, scraper, or flame cleaner |
| Application Scope | Highways, expressways, intersections, edge lines, rumble strips |
| Machine Weight | 150 – 350 kg |
| Dimensions (L×W×H) | 1350×950×1050 mm approx. |
| Optional Features | Laser guide, camera, dual-tank heating, logo mold |

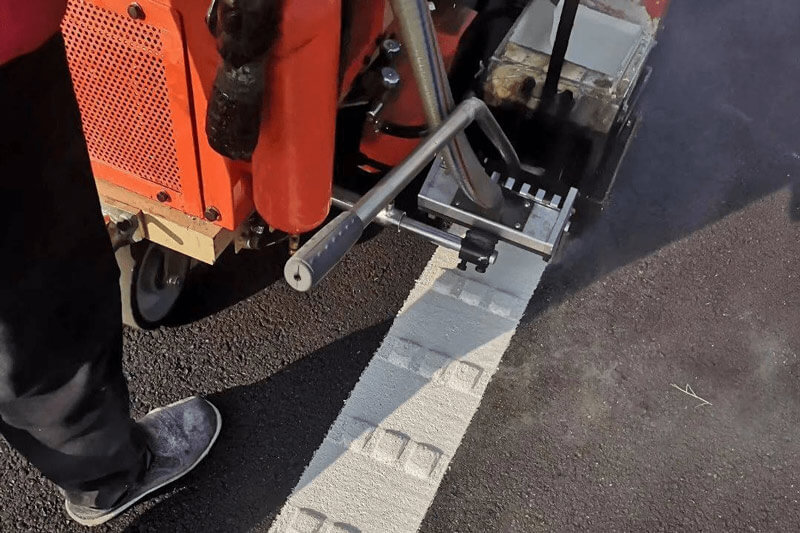

They create audible and vibratory feedback when a vehicle crosses them, enhancing driver awareness and lane discipline.
Yes, both height and pitch can be customized via the marking drum or gear head.
Absolutely. It works with standard hot melt road marking materials at 160–220°C.
The markings last over 30 months even under heavy traffic and harsh weather.
Yes, it comes with a synchronized system to apply reflective glass beads on each raised section.
Superior Reflective Performance
Optimized Safety Solutions
Engineered Industrial Durability
Rapid Application Technology
Eco-Friendly Aesthetic Appeal
Vibrant, Long-Lasting Markings
Robust Corrosion Protection
High Visibility Assurance
This thermoplastic convex marking machine is powerful and stable. In Pakistan’s hot climate, the line clarity and vibration bumps are still very precise. Impressive!
This thermoplastic convex machine worked perfectly in Thailand. Clear, raised markings improve night visibility. Stable operation and strong heating system. Very satisfied with the results.
We used this machine in Côte d'Ivoire. Excellent for vibration lines. Strong adhesion, good anti-slip finish, and easy to control on curves.
In Colombia, this machine delivered high-quality convex lines. Easy to operate, great material flow. Drivers instantly noticed the safety improvement. Great for city roads.
We used this in UAE for highway rumble strips. Strong heating system, consistent thickness, and fast line speed. Excellent for safety-focused government projects.
In Thailand, this marking machine helped reduce speeding in school zones. Vibrating lines were uniform and bright. Very suitable for urban safety use.
