High-Precision Two Component Road Marking Machine - Trusted Worldwide
Widely Used For Roads & Highways, Parking & Commercial Areas, Airports & Transport Hubs, Public & Private Properties, Special Road Markings
Color Customized White/Yellow/Blue/Other Colors
Free Samples 3-Day Global Shipping （No Hidden Costs
Standard CE Certified/ISO 9001:2015/RoHS Compliant/EU REACH Regulation for MMA materials
MOQ 500kg, Fast Delivery: 7-15 Days

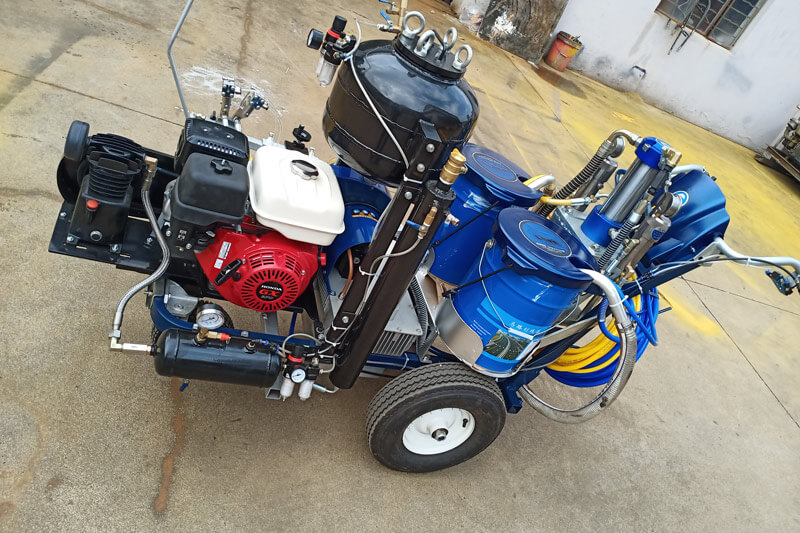

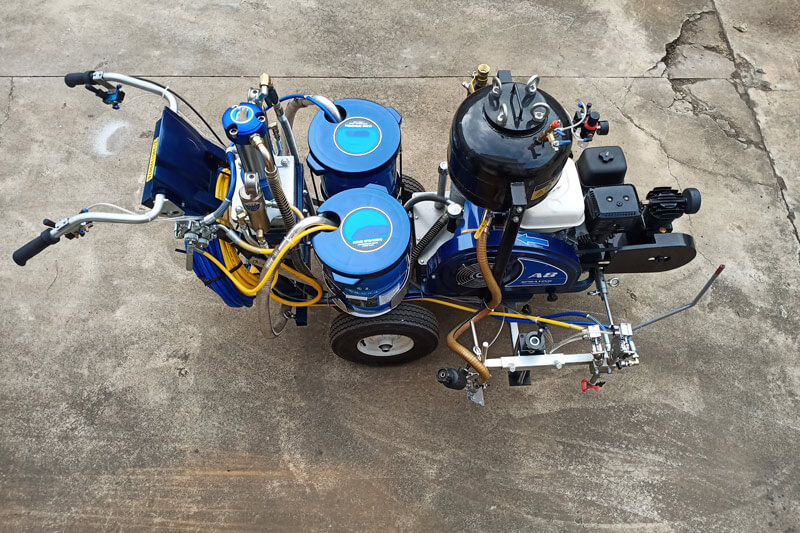

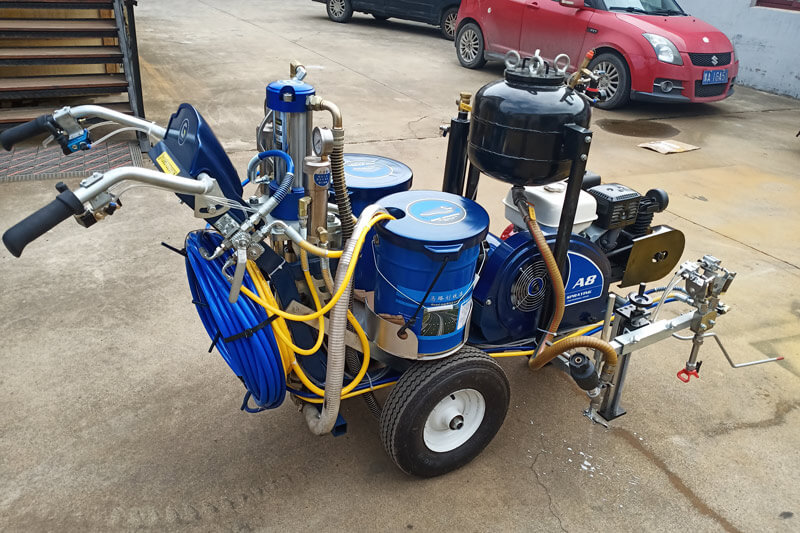

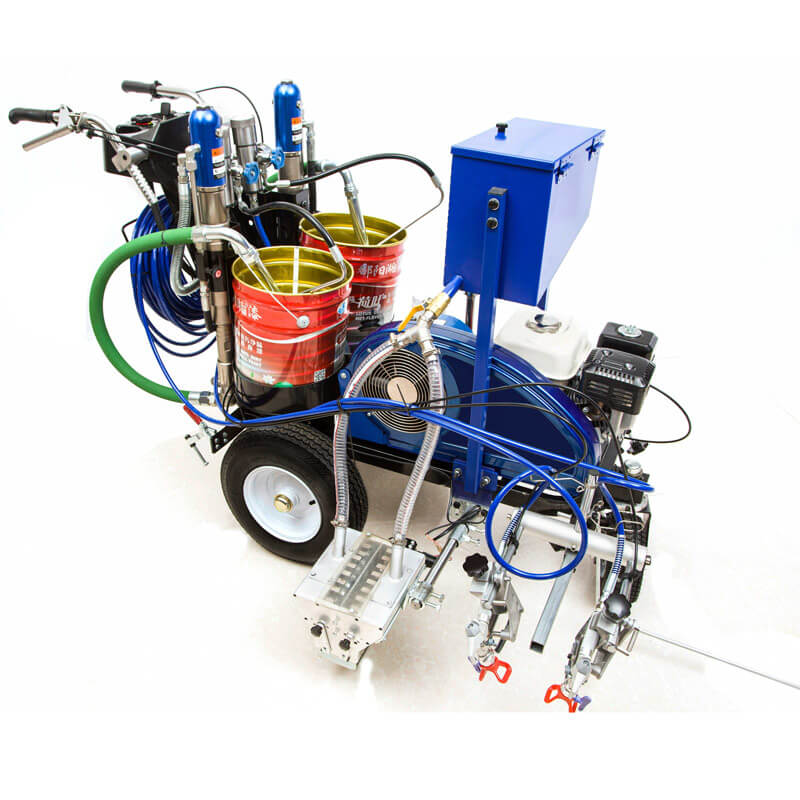

Tianhua Group Two Component Road Marking Machine is engineered for high-performance application of cold plastic markings, delivering superior adhesion, wear resistance, and long-term visibility. With independent dual tanks and precise metering pumps, it ensures accurate 98:2 or 1:1 material mixing. Suitable for all types of pavements including highways, city roads, and intersections, the machine guarantees durable, weather-resistant markings with reflective options for night visibility.
White/Yellow/Blue/Other Colors
We welcome sample requests.
Road marking paint plays a vital role in traffic management, improving safety, efficiency, and organization across different environments. From highways to urban roads, and even specialized areas like transport hubs and industrial zones, high-quality road markings enhance visibility and guide road users effectively.
| Item | Specification |
| Model | TCM-300 / TCM-500 / Customized |
| Marking Type | Two-component cold plastic (reactive resin: base + hardener) |
| Mixing Ratio | 98:2 or adjustable (base:hardener) |
| Marking Width | 100 – 600 mm (customizable) |
| Line Thickness | 1 – 4 mm (adjustable) |
| Paint Tank Capacity | 100L – 300L (dual chamber: base and hardener) |
| Mixing System | Static dynamic mixer / Spiral mixing tube |
| Marking Gun | Airless spraying gun or extrusion type |
| Control System | PLC + manual control / Touch screen (optional) |
| Drive Method | Manual push / Self-propelled / Truck mounted |
| Bead Dispenser | Pressurized or gravity-type glass bead dispenser |
| Application Scope | Urban roads, highways, crosswalks, bike lanes |
| Cleaning System | Solvent flush or high-pressure cleaning system |
| Power Supply | Gasoline engine / Electric motor (optional) |
| Pump Type | High-pressure plunger pump or gear pump |
| Mixing Accuracy | ±0.5% |
| Machine Weight | 120 – 400 kg (depending on model) |
| Dimensions (L×W×H) | 1200×900×1100 mm (approx.) |
| Optional Functions | Night light system, camera guidance, automatic lifting gun, heating system |
Our machine is compatible with cold plastic MMA (Methyl Methacrylate) paints in either 98:2 or 1:1 mixing ratios.
Typically, the markings last up to 3–5 years, depending on traffic load and climate conditions.
Yes, the system is heat-resistant and designed for consistent performance in extreme temperatures from -10°C to 50°C.
Yes, the machine includes an automatic flushing system for faster cleaning and reduced downtime.
We provide full after-sales support, including spare parts and 24/7 technical assistance.
Superior Reflective Performance
Optimized Safety Solutions
Engineered Industrial Durability
Rapid Application Technology
Eco-Friendly Aesthetic Appeal
Vibrant, Long-Lasting Markings
Robust Corrosion Protection
High Visibility Assurance
This two component marking machine worked very well in Indonesia. Accurate spraying and easy controls. Perfect for big city road maintenance projects like ours.
We used this machine in Qatar. Reliable performance under extreme heat. Strong build and precise application. Definitely a good choice for Middle East road works.
In Nigeria, this road marking machine exceeded our expectations. Easy to operate, quick drying, and clean line output. Ideal for long-distance striping projects.
This machine performed great in Colombia. Excellent pressure control, consistent flow, and solid results. Great for mountainous roads and city highways alike.
We tested this in Uzbekistan. Machine is stable and efficient, even on rough roads. Paint dries fast and the operation is smooth. Very satisfied!
In Zimbabwe, this two component machine helped speed up our road work. Strong structure, accurate marking, and easy maintenance. Great value for contractors.
